CORDLESS IMPACT WRENCH LXT®
DTW700 / DTW701
CORDLESS IMPACT WRENCH LXT®
HIGH TORQUE AND CONVENIENCE IN COMPACT PACKAGE
Makita's new Impact Wrenches DTW700 and DTW701 are high torque tools with compact design. These tools feature Auto Speed Mode for convenient and safe use. Full Speed Mode is an excellent feature when tools are needed for longer periods at a time. The only difference between DTW700 and DTW701 is that the drive shanks are different: DTW700 is equipped with friction ring and DTW701 is equipped with pin detent drive shank.
CHOOSE THE WORKING MODE FOR YOUR NEED
FEATURES

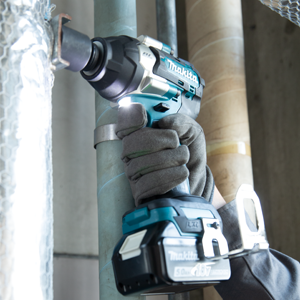

Power
Brushless Motor delivers 700 Nm of max fastening torque and 1000 Nm of Nut-Busting Torque

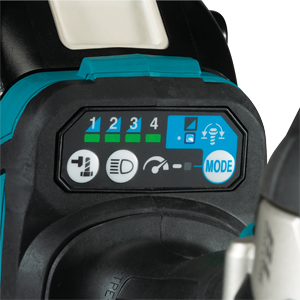

Control
4-speed power selection for precise fastening control in a wide range of applications.

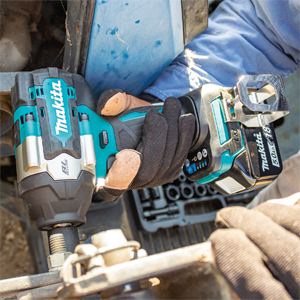

Innovation
3 forward and 3 reverse Auto-Stop modes for increased efficiency.
Comfort
Compact design, Full Speed mode and light weight provide extra comfort and reduced operator fatigue. Twin-LED job light for darker surroundings.
-

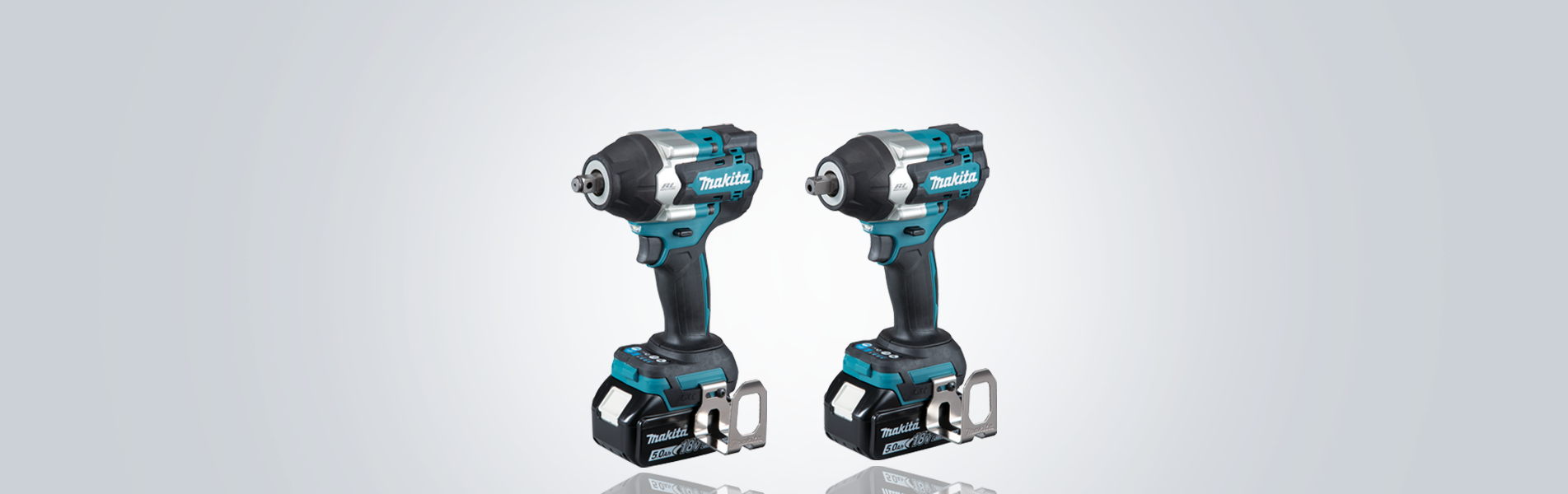

CHOOSE THE MODEL FOR YOUR NEEDS
DTW700
DTW701
Friction ring drive shank
Pin detent drive shank
DTW700
Friction ring drive shank
DTW701
Pin detent drive shank

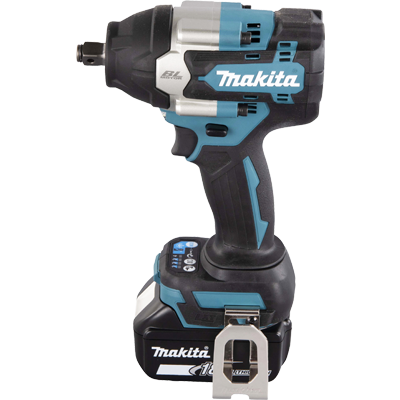

TECHNICAL SPECIFICATIONS
- Fastening Capacity for Standard Bolt: M10 - M24
- Square Drive: 1/2"
- No Load Speed: 0 - 500 / 1200 / 1900 / 2200 min⁻¹
- Impacts Per Minute (IPM): 0 - 1000 / 1700 / 2400 / 2700
- Max Fastening Torque: 700 Nm
- Nut-Busting Torque: 1000 Nm
- Weight w/ Battery (EPTA): 2,3 - 2,7 kg
- Dimensions with BL1860B battery (L x W x H): 170 x 81 x 276 mm
AVAILABLE VERSIONS
Impact Wrench LXT®
18V

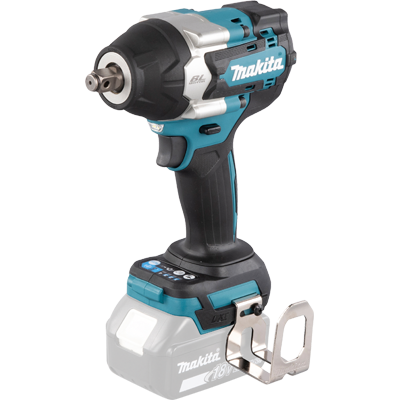

DTW700Z
3 modes of reaction time for automatic stop available both in forward and reverse rotation modes. Friction ring shank.
A powerful, brushless 1/2" drive impact wrench with a fastening torque of up to 700 Nm. Three different power settings. Equipped with an twin LED lights for added lighting, this tool is ideal for applications that require high fastening torque. Tool only, battery and charger not included.
TO PRODUCT PAGE
Impact Wrench LXT®
18V

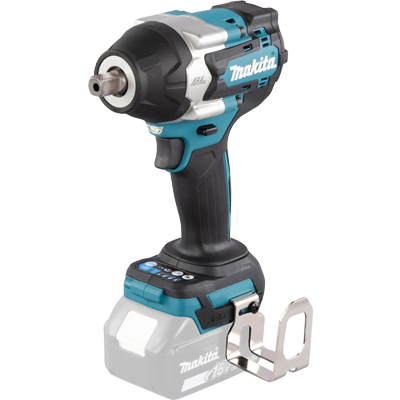

DTW701Z
3 modes of reaction time for automatic stop available both in forward and reverse rotation modes. Pin detent shank.
A powerful, brushless 1/2" drive impact wrench with a fastening torque of up to 700 Nm. Three different power settings. Equipped with an twin LED lights for added lighting, this tool is ideal for applications that require high fastening torque.
